SHEAR WITH BLADE C SERIES WESTTECH

WORK EFFICIENTLY. WORLDWIDE.

The Shear Feller Woodcracker C Series reach the right compromise between lightness, strength and cost. The main advantages of the shears feller Westtech Woodcracker C series are: the ability to treat the stumps characterized by suckers close to each other; the lower hydraulic demand respect to feller disc; low weight and reduced cost; the equipment of collection clamp (as optional) that performs the function of accumulation and facilitates the operator to intercept the trunks or suckering that must be cut, speeding up the execution of a single cycle [placement, removal and subsequent deposition on the floor of the cut plants]. Since 2017 the shears are also available in version with the chainsaw, who replaced the standard blade.

TECHNICAL DATA
Builder: WESTTECH
Manufacture: AUSTRIA

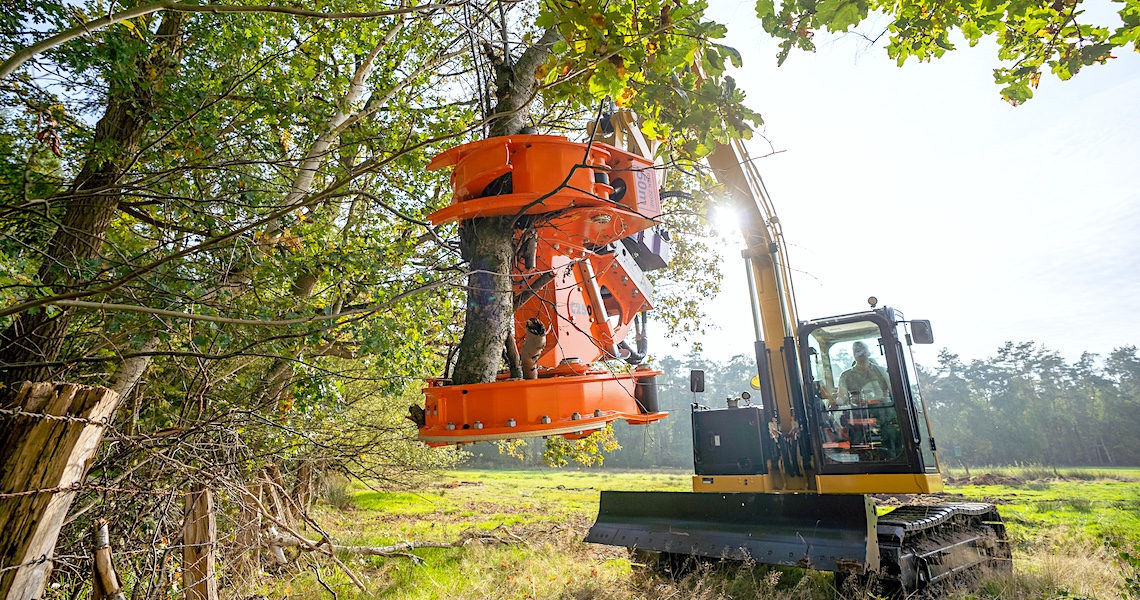

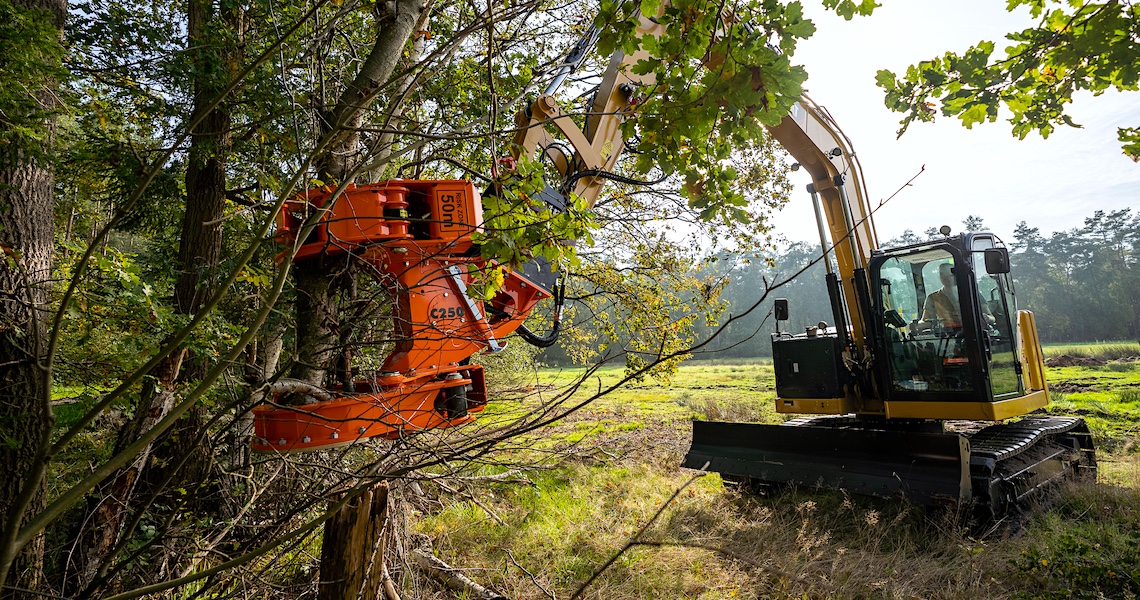

Modell: C250
Diameter Cutting Soft Wood: 300 mm
Diameter Cutting Hard Wood: 250 mm
Gripper Opening: 930 mm
Diameter of Shear: 450 mm
Weight Base / Full Optional: 580 Kg – 900 Kg
Pump Flow Capacity: 50 l/min – 100 l/min
Operating Pressure: 280 bar
Weight Vehicle Carrier: 7 ton – 15 ton

TECHNICAL DATA
Builder: WESTTECH
Manufacture: AUSTRIA

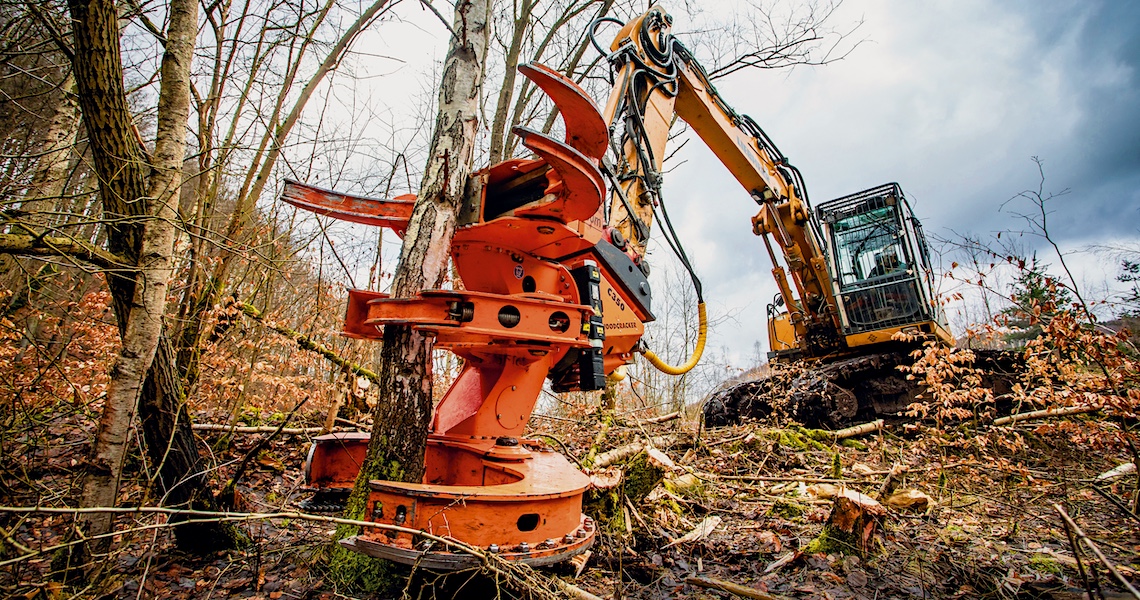

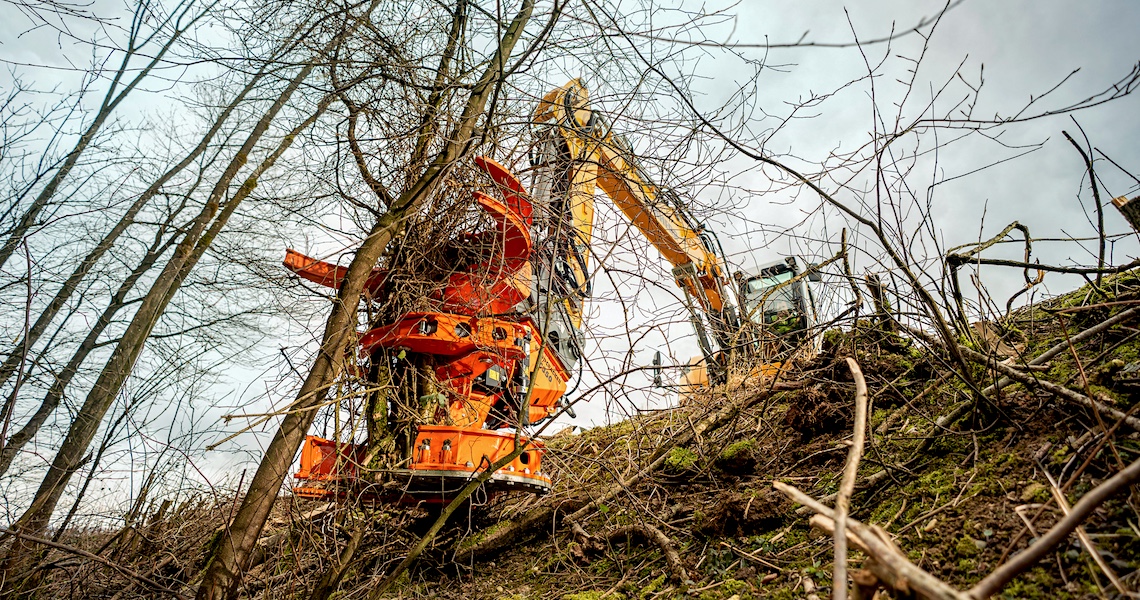

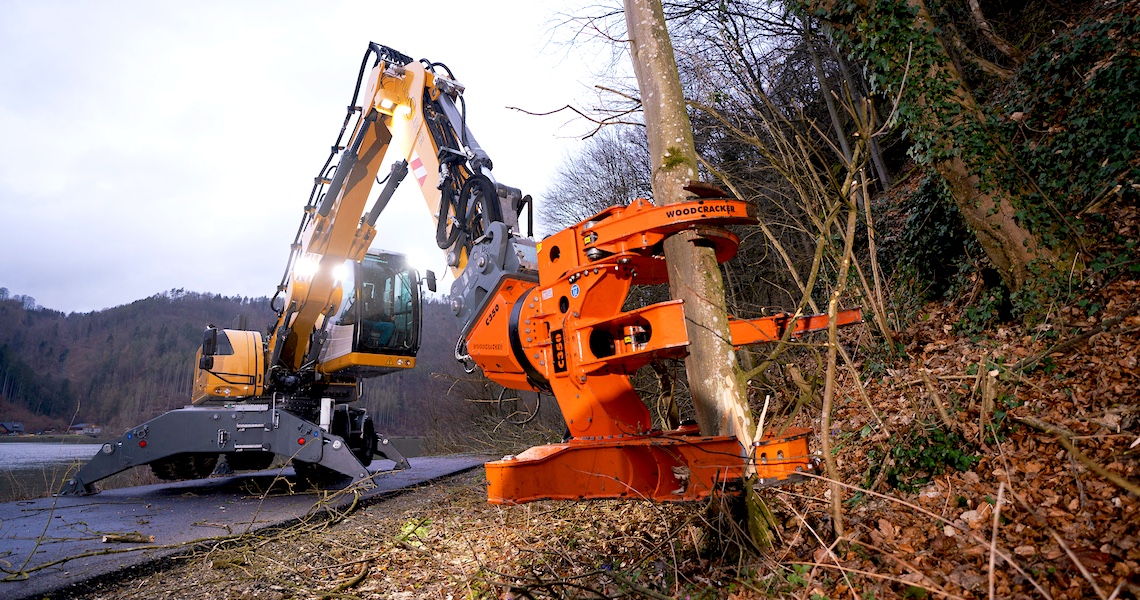

Modell: C350
Diameter Cutting Soft Wood: 400 mm
Diameter Cutting Hard Wood: 350 mm
Gripper Opening: 1.430 mm
Diameter of Shear: 700 mm
Weight Base / Full Optional: 1.100 Kg – 1.400 Kg
Pump Flow Capacity: 70 l/min – 150 l/min
Operating Pressure: 280 bar
Weight Vehicle Carrier: 14 ton – 20 ton

TECHNICAL DATA
Builder: WESTTECH
Manufacture: AUSTRIA

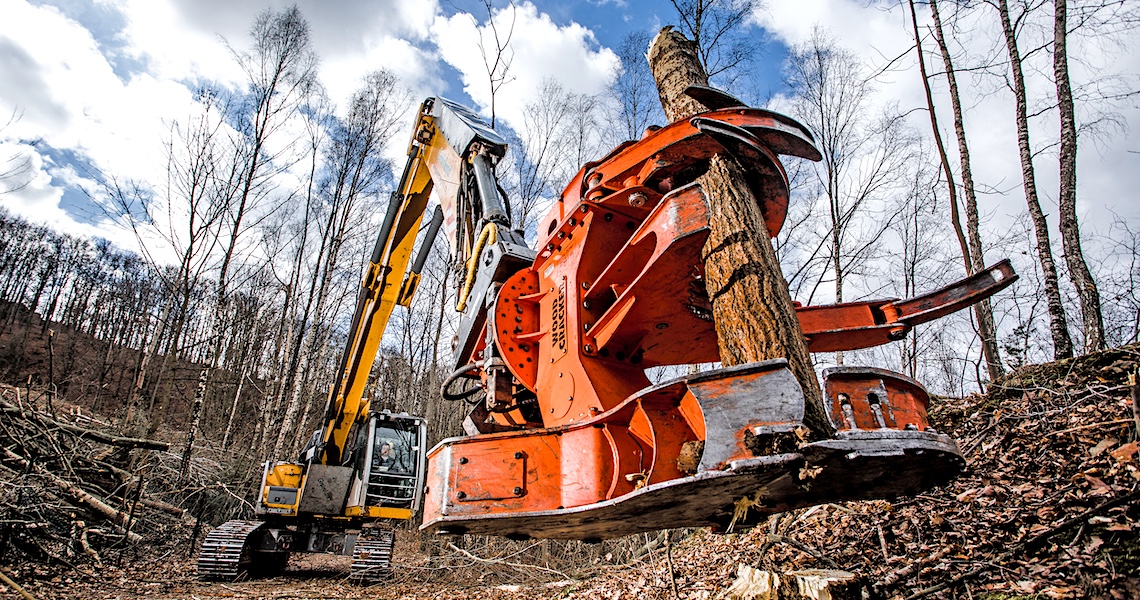

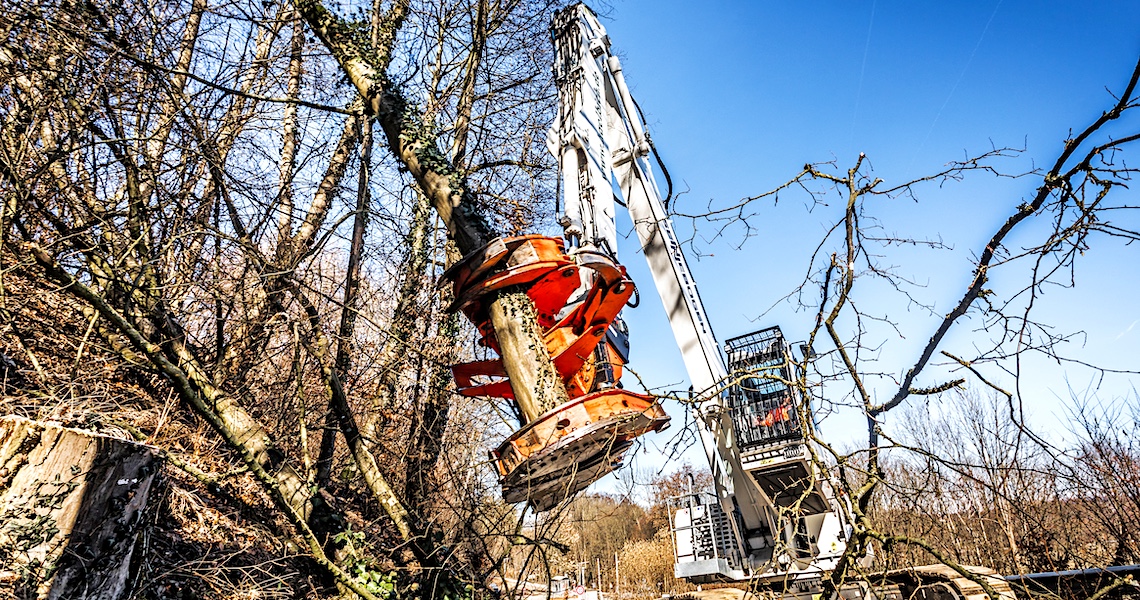

Modell: C450
Diameter Cutting Soft Wood: 500 mm
Diameter Cutting Hard Wood: 450 mm
Gripper Opening: 1.600 mm
Diameter of Shear: 800 mm
Weight Base / Full Optional: 1.600 Kg – 2.100 Kg
Pump Flow Capacity: 80 l/min – 160 l/min
Operating Pressure: 280 bar
Weight Vehicle Carrier: 20 ton – 25 ton
Latest Version Available: C550
