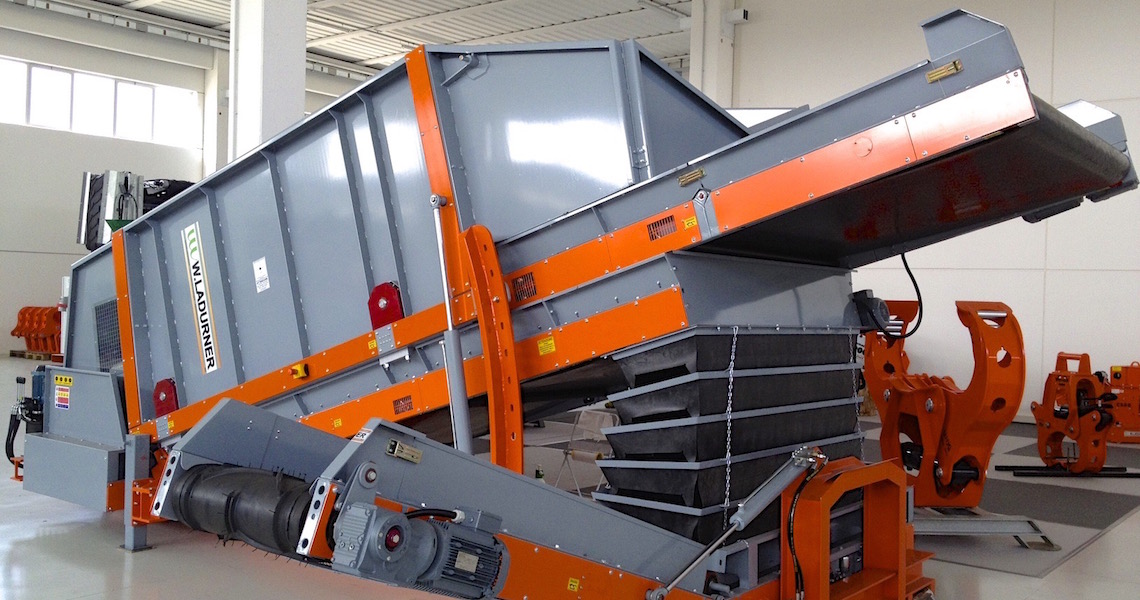

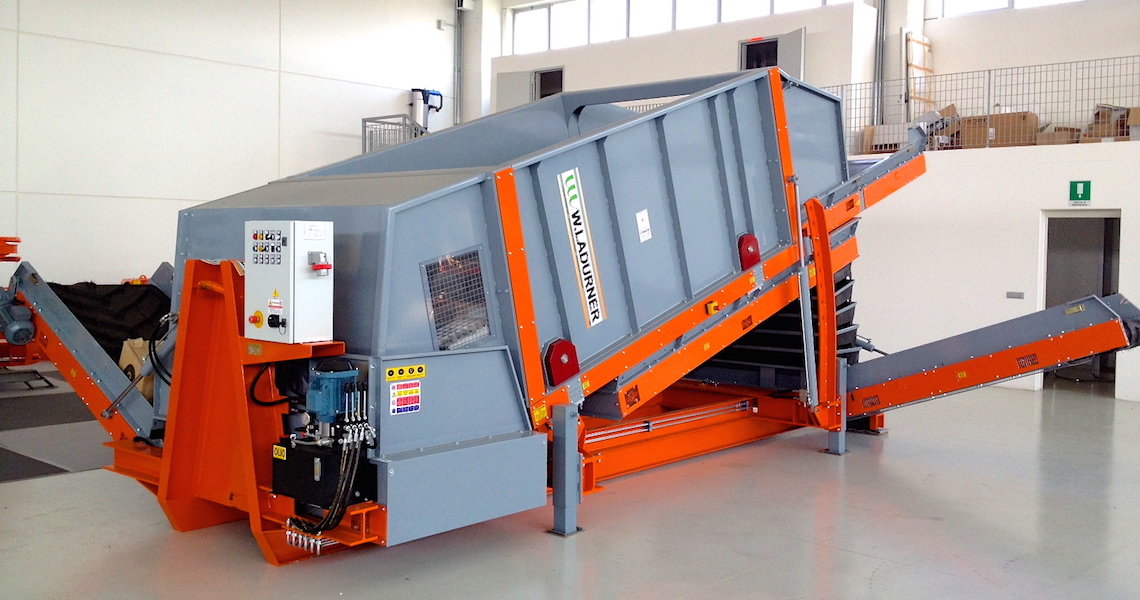

BALLISTIC SEPARATOR
WLS 201H
TECHNICAL DATA
Modell: WLS 201-H
Manufacture: ITALY
Motor: ELECTRIC 17 kW
Transport Data: W. 6.200 mm x L. 2.500 mm x H. 3.000 mm
Operative Data: W. 7.800 mm x L. 2.500 mm x H. 3.400 mm
Work Inclination: from 5% to 22,5%
Hourly Production: 5 t/h
N° Paddles: 6
Paddles’ Lenght: 4.000 mm
Load Height: 2.500 mm
N° Fractions: 3
Weight: 7.750 Kg
Treated Materials: PAPER / CARDBOARD – PLASTIC – GLASS
The use of our technology for the selection and recovery of waste material guarantees the best sorting results and high separation precision. The WLS Ballistic Separator guarantees your waste treatment and recovery plant a high treatment capacity and exceptional separation in the process of the recovery stream of recyclable materials.
The WLS ballistic separator divides in two / three fractions mixed materials according to certain characteristics:
– rotary materials: heavy materials, rigid, solid, round, cubic eg. plastic containers, glass bottles, ferrous and non-ferrous metals, etc…

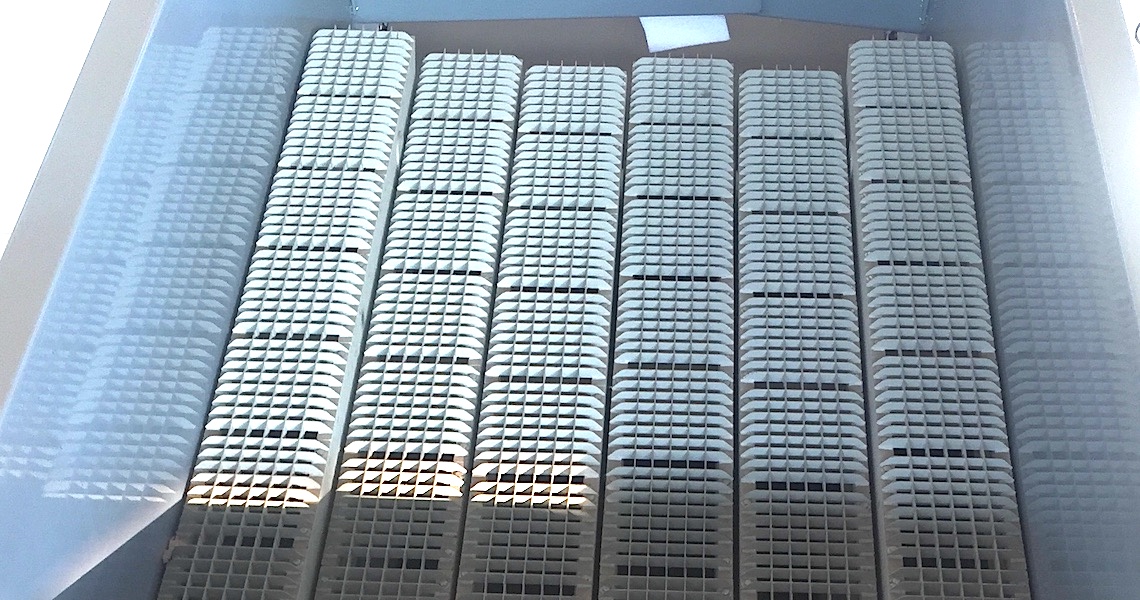

– screened fraction: materials screened based on the holes of the components of screening.
– Flat materials: light materials, such as flat or thin plastic films, paper, textiles etc…
– Available in fixed or hook lift version.
