BIOSCHREDDER MS 3000 MINISHARK 5 WILLIBALD

COMPACT
VERSATILE AND
PROFESSIONAL

TECHNICAL DATA
Hersteller: WILLIBALD
Modell: MS 3000 MINISHARK
Antrieb: PERKINS 130 kW (176 HP)
Maße: L. 8.300 mm x B. 2.500 mm x H. 3.300 mm
Stundenleistung: 40 m³/h

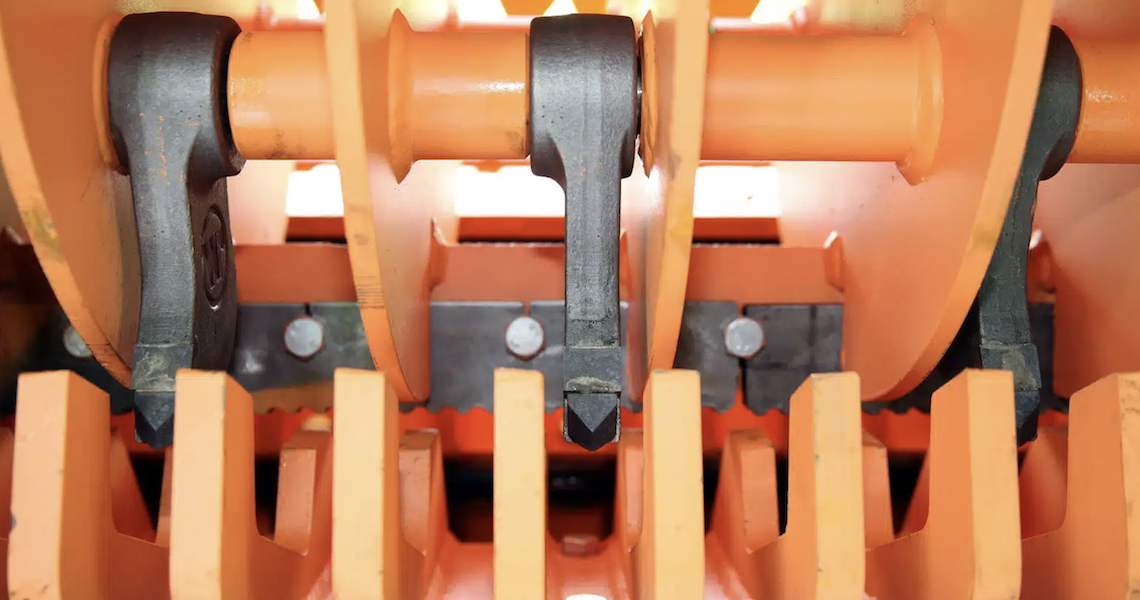

Rotor: 22 FIXE ZÄHNE oder 18 SCHLEGEL
Rotordurchmesser: 700 mm
RPM Rotor: 850 U/min – 1.500 U/min
Gewicht Rotor: 500 Kg
Ladehöhe: 1.800 mm
Tankvolumen: 130 L
Gewicht: 9.000 Kg

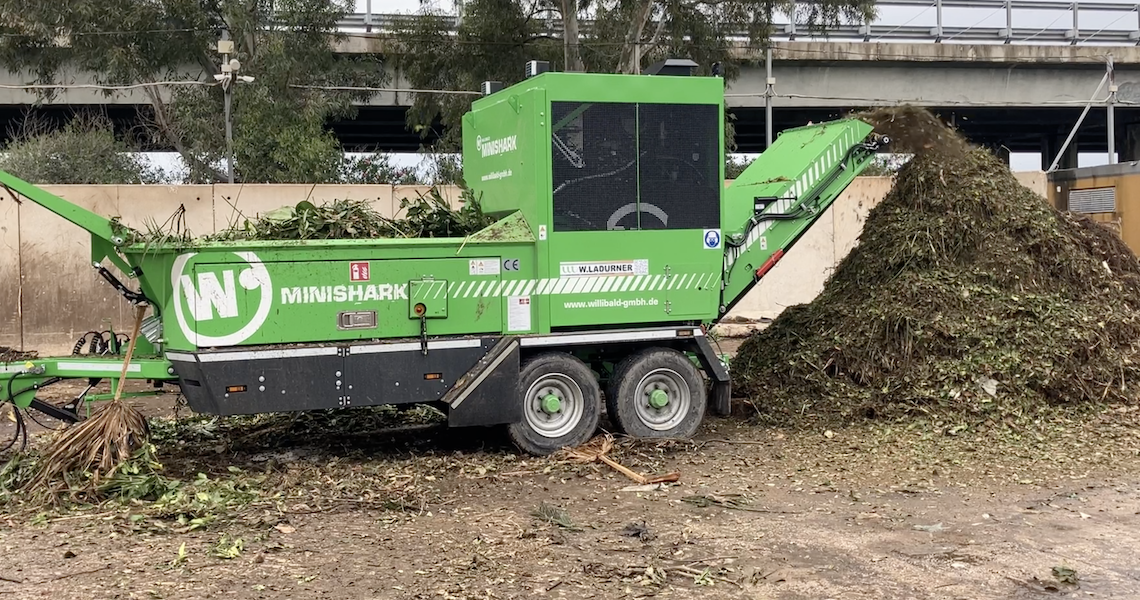

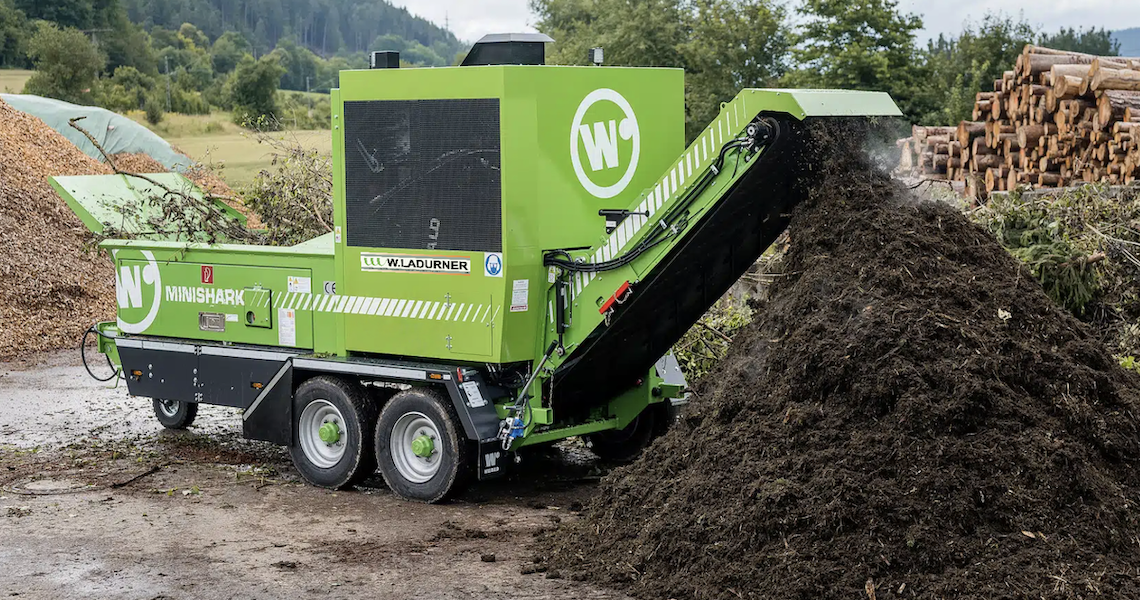

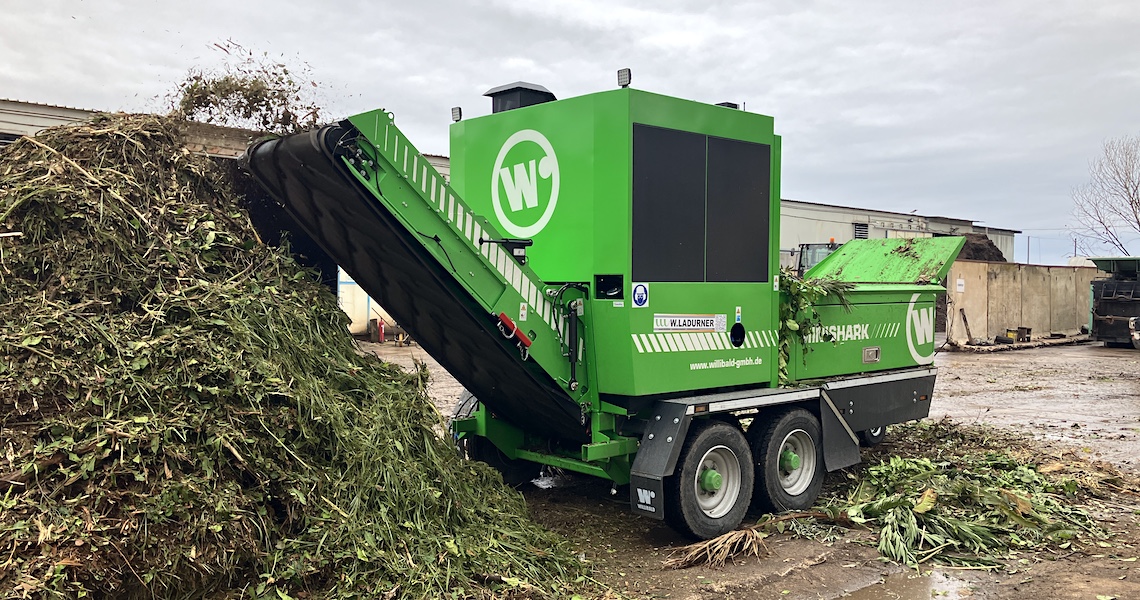

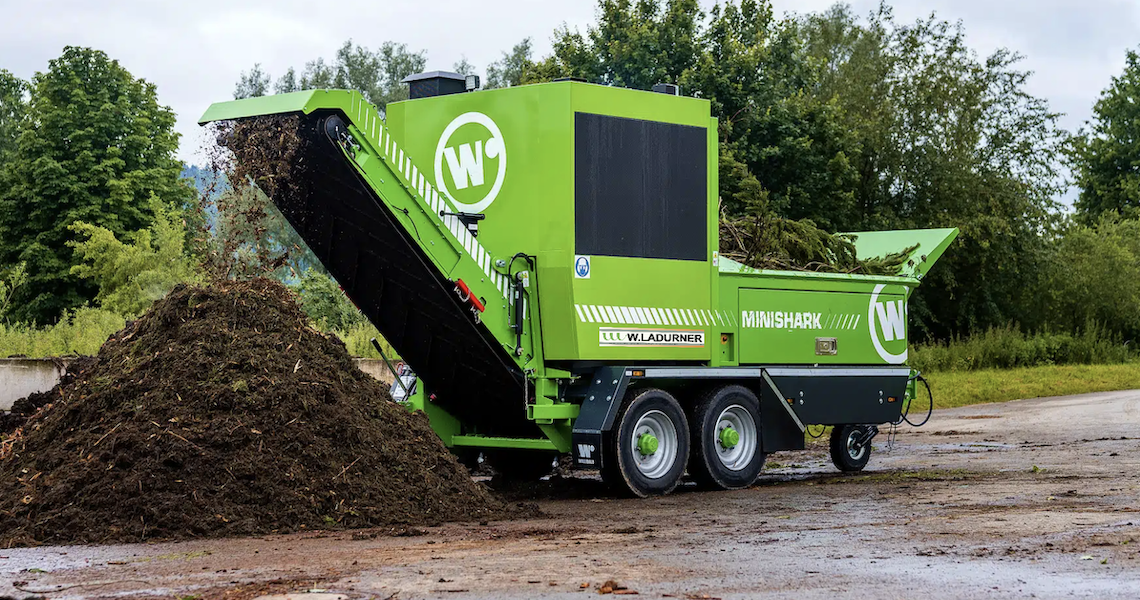

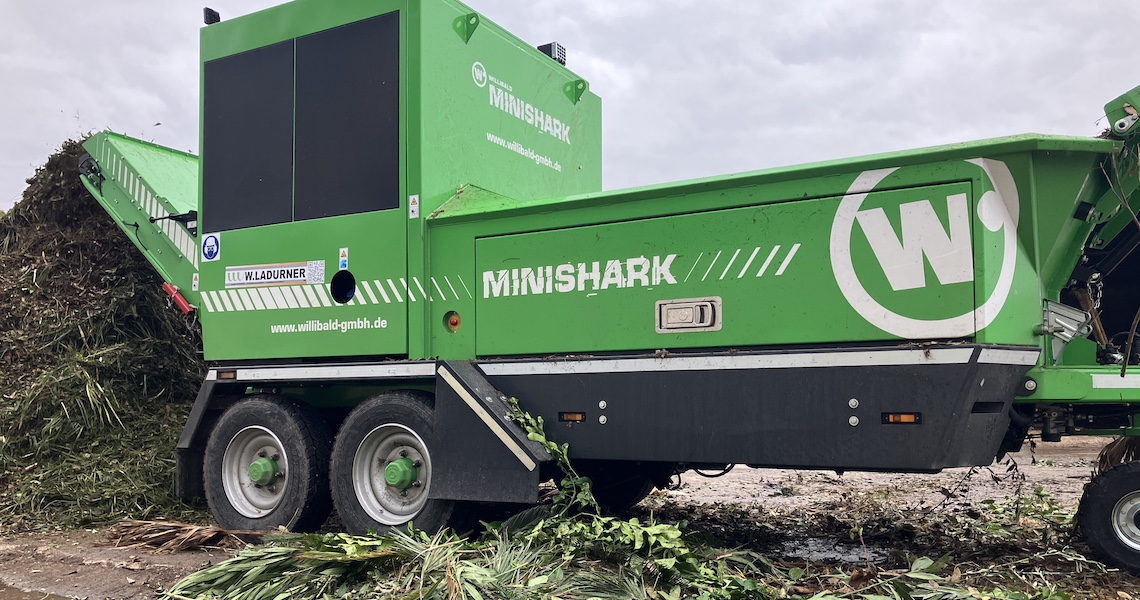

The Bioshredder MS 3000 MINISHARK 5 Willibald is the most compact machine of the entire range of shredders of the German company. It can prove particularly convenient as a basis for the exercise of small-medium gardening companies, landscape architecture of biomass and composting that must treat green waste, scarf, wooden waste and pallets.

It is conceived as a trailer and it is mounted on a two central axes frame, while trailer with 1 electric version axis. The twin support wheel, adjustable in height, lightens the connection to the driving vehicle and allows the movement of the machine by means of the automatic translation device. The diesel tank and the storage compartment are easily accessible under the lateral coverings of the loading hopper thanks to the large limited doors.

The Bioshredder MS 3000 MINISHARK 5 Willibald operates by a Perkins diesel or electric 90 kW engine, chosen by the customer. The power transmission takes place through two trapezoidal straps in synthetic material. The adjustment of the number of RPM according to the load grants the machinery the sufficient power for the chilling also of particularly voluminous green waste. The material is shredded with the same principle as the top range Shark. The machine is also equipped with most of the older brother’s options. All shredders are equipped with protection devices against accidents at work and against damage to the machinery itself.
